Low Voltage Power Distribution Board

Product Overview

        The panelboard has different circuit breaker specifications and capacities depending on the purpose of use. Therefore, flexible production methods are essential.

        LS ELECTRIC panelboard has main busbar up to 600AF manufactured in rail type, so branch circuit breakers can be moved freely and there is no limit in capacity selection. The main busbar up to 1200AF has improved safety with a general bolt-on type.

        LS ELECTRIC panelboards are available in wall-mounted and flush- mounted versions with up to 1200A main lug or main circuit breaker.

Excellent scalability

        •Branch circuit breakers can be easily added using BSK(Bus Strap Kit) without additional processing

High reliability and safety

       •UL tested and approved

       •User safety considerations

Easy maintenance

       •Easy to replace in case of circuit breaker capacity change and device failure

       •Minimize replacement and repair time

Applications

       •Large industrial complexes

       •Commercial and high-rise buildings

       •OEM (Panelboard Assemblers)

       •Utility/Public

Flexible

       •Can be customized configuration according to different power needs, support a variety of circuit numbers and types

       •easy to expand and upgrade to adapt to future changes in demand

High efficiency

       •Optimized design to reduce energy loss and improve power distribution efficiency

       •Good evaporation performance: Effective management of heat to extend equipment life

Panelboard Specifications

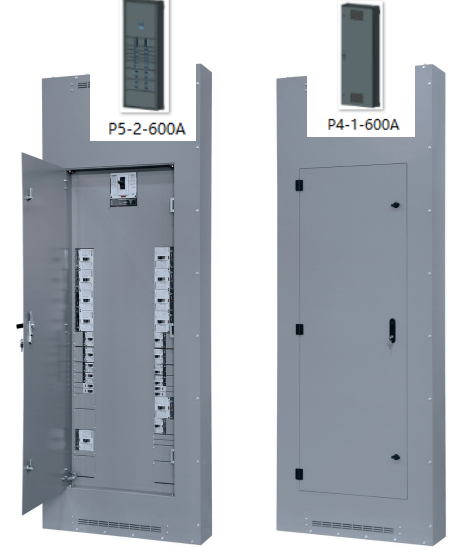

       LPB-2

       •Bus System: Railtype

       •Main Lugs: 400/600A

       •Main Breakers: 250 – 600A

       •Branch Breakers: 15 – 250A

       •Enclosure

             -NEMA Type 1(Indoor)

             -NEMA Type 3R(Indoor & Outdoor)

             -Door in door

             -Std. Dimension: W32”×H75”~ 90”×D13”

       •UL67 Standards

 Description  400AF  600AF
 Rated Current(A)  Main Breaker
 Main Lug
 Branch Breaker
 UTS400(250-400)  UTS600(500/600)
 400  600
 UTE100(15-100)/UTS150(40-150)/UTS250(150-250)
 Short Circuit Current Rating (kA,rms)  240V
 480V
 50-100  50-100
 25-100  25-100
 Main Bus Type  Rail
 Enclosure Type  NEMA Type 1(Indoor)/2(Indoor)/3R(Indoor & Outdoor)
 Standard Enclosure Dimension Inch(mm)  W
 H
 D
 32in(813mm)
 90in(2286mm), 75in(1905mm) Depends on the number of branch breakers
 13in(330mm)

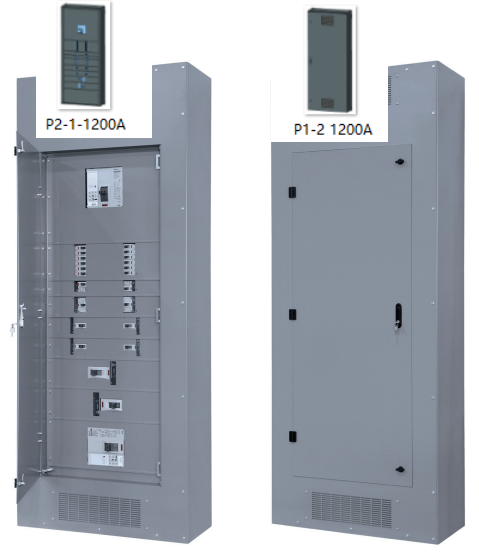

       LPB-3

       •Bus System: Bolt-on type

       •Main Lugs: 800/1200A

       •Main Breakers: 400 – 1200A

       •Branch Breakers: 15 – 1200A

       •Enclosure

             -NEMA Type 1(Indoor)

             -NEMA Type 3R(Indoor & Outdoor)

             -Door in door

             -Std. Dimension: W38”×H75”~ 90”×D15”

       •UL67 Standards

 Description  800AF  1200AF
 Rated Current(A)  Main Breaker
 Main Lug
 Branch Breaker
 UTS800(400-800)  UTS1200(800-1200)
 800  1200
 UTE100(15-100)/UTS150(40-150)/UTS250(150-250)/UTS400(250-400)/UTS600(500-600)UTS800(400-800)
 UTE100(15-100)/UTS150(40-150)/UTS250(150-250)/UTS400(250-400)/UTS600(500-600)/UTS800(400-800)/UTS1200(800-1200)
 Short Circuit Current Rating (kA,rms)  240V
 480V
 50-100  50-100
 25-100  25-100
 Main Bus Type  Bolt-on
 Enclosure Type  NEMA Type 1(Indoor)/2(Indoor)/3R(Indoor & Outdoor)
 Standard Enclosure Dimension Inch(mm)  W
 H
 D
 38in(965mm)
 90in(2286mm), 75in(1905mm) Depends on the number of branch breakers
 15in(380mm)
